RStudio Posit Tools for Data Science

Who are we?

Posit (née RStudio) is a public benefit corporation that creates open source and commercial products for data science.

As of this week, we are 381 people. About 50 people work solely on free open-source projects (about 40% - 50% of engineering).

We are mostly remote, across almost every continent. HQ is in Boston.

The IDE (aka “RStudio”)

Data handling and manipulation

Data ingestion

Getting your data in and formatting/manipulating it.

Non-posit:

arrow: Read arrow files
sas7bdat: Read SAS files
R has a very rich set of data base tools (see the Task Vew)
duckdb: DuckDB Database Management System
foreign Reads in data from SAS, SPSS, etc.

Posit data ingestion

readr: Read excel files (.xls and .xlsx) into R
vroom: Fast reading of delimited files
googlesheets4: Google Spreadsheets R AP
haven: Read SPSS, Stata and SAS files from R
rvest: Simple web scraping for R

Example code - tidyverse

library(tidyverse)
#> ── Attaching core tidyverse packages ───────────────────────────── tidyverse 2.0.0 ──
#> ✔ dplyr     1.1.1     ✔ readr     2.1.4
#> ✔ forcats   1.0.0     ✔ stringr   1.5.0
#> ✔ ggplot2   3.4.2     ✔ tibble    3.2.1
#> ✔ lubridate 1.9.2     ✔ tidyr     1.3.0
#> ✔ purrr     1.0.1
#> ── Conflicts ─────────────────────────────────────────────── tidyverse_conflicts() ──
#> ✖ dplyr::filter() masks stats::filter()
#> ✖ dplyr::lag()    masks stats::lag()
#> ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors

Not familiar with the tidyverse? Your best resource to learn is R for Data Science.

Reading in csv data

Entries.csv a 30mb file of daily train data:

system.time(raw_data <- read_csv("Entries.csv"))
#>    user  system elapsed
#>   1.226   0.028   0.325

What’s in that data set?

glimpse(raw_data)
#> Rows: 826,894
#> Columns: 5
#> $ station_id  <dbl> 40010, 40020, 40030, 40040, 40050, 40060, 40070, 40080, 40090, …
#> $ stationname <chr> "Austin-Forest Park", "Harlem-Lake", "Pulaski-Lake", "Quincy/We…
#> $ date        <chr> "01/01/2001", "01/01/2001", "01/01/2001", "01/01/2001", "01/01/…
#> $ daytype     <chr> "U", "U", "U", "U", "U", "U", "U", "U", "U", "U", "U", "U", "U"…
#> $ rides       <dbl> 290, 633, 483, 374, 804, 1165, 649, 1116, 411, 1698, 318, 364, …

Hmm. Let’s make the dates actual dates:

raw_data <-
  raw_data %>%
  mutate(date = mdy(date))

class(raw_data$date)
#> [1] "Date"

tidyverse and data manipulations

The code on the last slide accentuates how easy it is to code (and read code) when you need to do several things when using the pipe operator.

raw_data %>%
  filter(station_id <= 40030 & date <= ymd("2001-01-06")) %>%
  select(-daytype, -station_id, Date = date) %>%
  pivot_wider(id_cols = Date, names_from = stationname, values_from = rides)
#> # A tibble: 6 × 4
#>   Date       `Austin-Forest Park` `Harlem-Lake` `Pulaski-Lake`
#>   <date>                    <dbl>         <dbl>          <dbl>
#> 1 2001-01-01                  290           633            483
#> 2 2001-01-02                 1240          2950           1230
#> 3 2001-01-03                 1412          3107           1394
#> 4 2001-01-04                 1388          3259           1370
#> 5 2001-01-05                 1465          3357           1453
#> 6 2001-01-06                  613          1569            839

Data manipulation

Besides the tidyverse packages, there are a ton of open-source packages for manipulating data

glue: Glue strings to data in R. Small, fast, dependency free
forcats: Tools for working with categorical variables
fs: Provide cross platform file operations
clock: A Date-Time Library for R
sparklyr: R interface to Apache Spark

plus all of the d{*}plyr packages…

Visualization

`gg{*}` and others

We’ll, there’s ggplot2 and that covers a lot. Some lesser known packages and tools…

ggaminate non-interactive animations (e.g. gif, mp4) (example)
plotly interactive plots, can convert ggplots (example)

Not really ggplot:

leaflet interactive maps (example)
flexdashboard easy interactive dashboards for R
r2d3 interface to D3 Visualizations (best hex too)

shiny

It is is a popular R package and web application framework that makes it easy to tell data stories in interactive point-and-click web applications.

Two big things that are works-in-progress:

The visual UI editor
Shiny for python

Data analysis and modeling

A selection of our modeling tools

There is a lot to talk about here:

tidymodels
keras
torch
vetiver

tidymodels

… is a framework for statistical and machine learning models using tidyverse syntax.

Basically caret on steroids. Can also access the h2o modeling framework.

If you want more details:

Preparing your data using recipes

The recipes package helps prepare your data prior to modeling.

You can think of it as a better version of model.matrix() crossed with dplyr.

Here’s a hypothetical example:

rec <-
  recipe(outcome ~ ., data = data_set) %>%
  step_mutate(log_x1 = log10(x1)) %>%
  step_rm(x1) %>%
  step_other(starts_with("zip"), threshold = 1 / 100) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_normalize(all_numeric_predictors()) %>%
  step_pca(all_numeric_predictors(), num_comp = 10)  # or num_comp = tune()

tensorflow/keras

(Mostly just called “tensorflow” now)

These are deep learning libraries in python.

There are a lot of tensorflow-related R packages that access the python machine learning functionality (just like it does for C, java, etc).

An excellent R package called reticulate provides the means to access all of python via R.

To get started, see the tensorflow website and the R version of Chollet’s deep learning book

torch

Another machine learning library.

Rather than using python as an intermediary, it bundles the C++ files in the R package.

It can be used as an additional computing environment within R.

Some places to get more information:

the torch package website
Deep Learning and Scientific Computing with R torch book (new!)
brulee is an R package that has basic model implementations via torch.

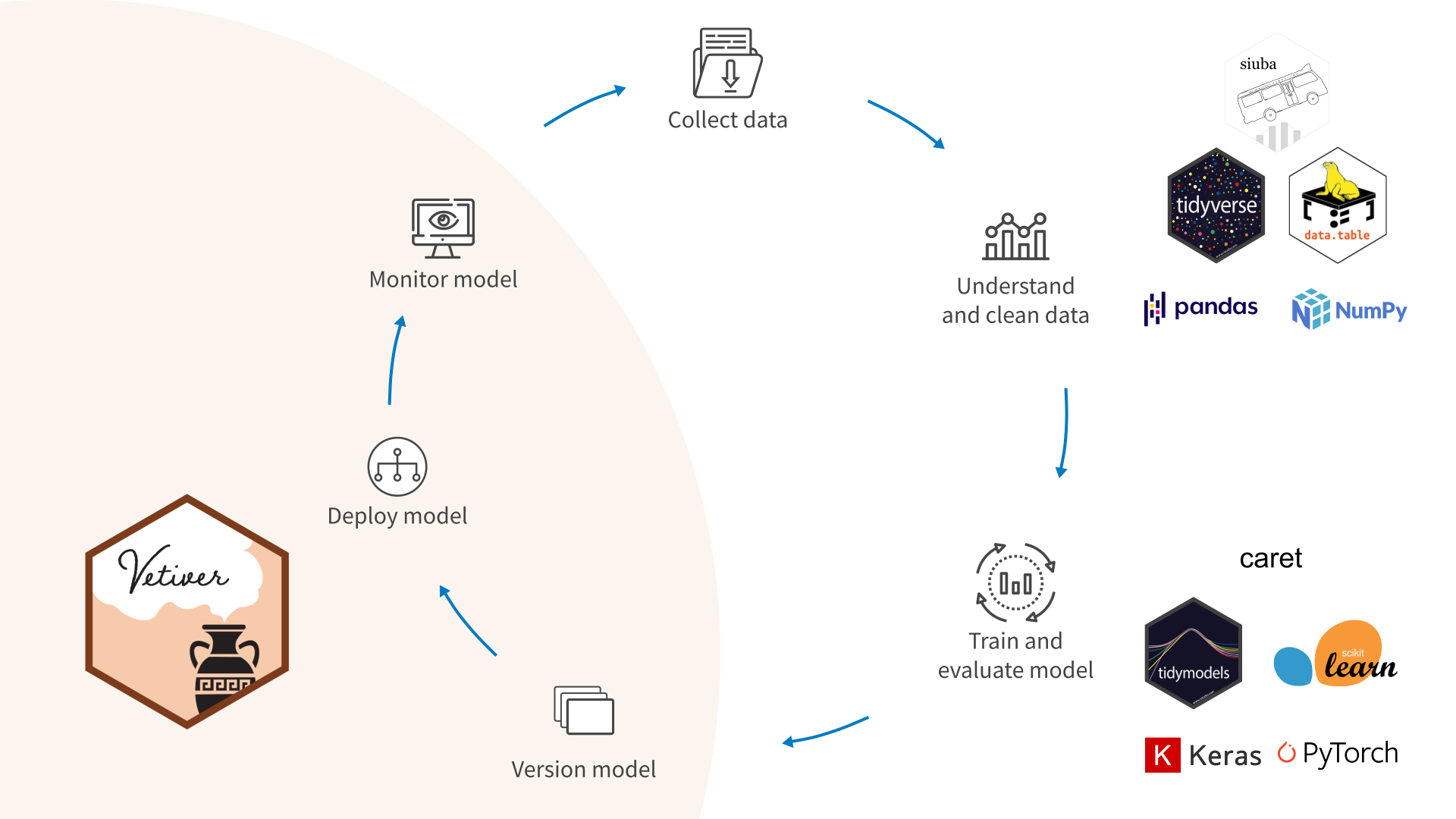

Vetiver

vetiver has R and python implementations that enable simple versioning and deployment of models.

Overall documentation is at MLOps with vetiver.

Reporting/Communicating

Quarto!!!!

This is a new publishing system that does all of the things that Rmarkdown does (docs, pages, books, blogs) with a common syntax.

Quarto is not built within R; it works with R, python, Julia, and Observable.
Can publish to HTML, PDF, Epub, markdown, Confluence, and so on.
It encourages interactivity in documents.
Plenty of examples for documents, websites, books and so on in the gallery

Quarto

If you’ve used knitr and Rmarkdown, you will feel very comfortable with Quarto.

Code chunks have options in-line:

```{r}
#| label: fig-ggplot
#| fig-cap: !expr ggplot_caption_object
#| fig-width: 6
#| fig-height: 4.25
#| out-width: 70%

mtcars %>% ggplot(aes(disp, mpg)) + geom_point()
```

The gt package

People seem to loooove tools for making tables in documents.

The gt package is a nice addition to set of table packages.

library(gt)
three_stations %>%
  gt() %>%
  tab_header(
    title = "Chicago Train Ridership",
  ) %>%
  tab_spanner(
    label = "Riders/Day",
    columns = c(-Date)
  )

Date	Riders/Day
Chicago Train Ridership
Date	Austin-Forest Park	Harlem-Lake	Pulaski-Lake
2001-01-01	290	633	483
2001-01-02	1240	2950	1230
2001-01-03	1412	3107	1394
2001-01-04	1388	3259	1370
2001-01-05	1465	3357	1453
2001-01-06	613	1569	839

Posit Workbench and Connect 💵

Potpourri

webR

This is a good example of how we are often competing with ourselves.

webR is a tool that will compile R into machine-readable code and embed it in a website.

All of the resources are from your local machine. Let’s play!

Good summaries:

Getting more information

You can always contact me (max@posit.co) or Phil Bowsher (phil@posit.co)
